Product Shenzhen chuangxinteng temperature control technology co. LTD

3611

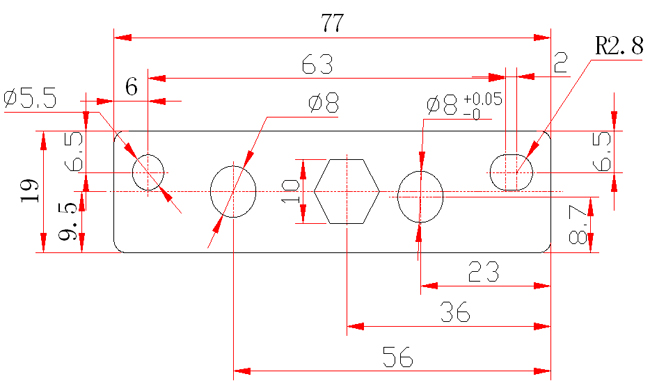

Outline dimension drawing :

Introduction to ODS
1, the working principle: the use of thermocouple temperature sensing component of long fire generating thermoelectric potential to drive the valve, when the appliance is located spatial hypoxia (oxygen content less than 17%~19%) so that the fire long small flame temperature lower than 400 DEG C, open state potential thermocouples provide enough to maintain the valve, so as to cut off the gas source, to ensure that the person safety.
2, function: automatic ignition, hypoxia protection to the stove.
3, the gas source categories: natural gas, liquefied petroleum gas.
4, the output potential: greater than or equal to 15MV.
5, the nozzle: stainless steel, copper, precious stones.
6, may be in accordance with customer requirements design and manufacture.
